HZS30/HZS50/HZS75/HZS100/HZS120
CHEN LI
PRODUCT FEATURES
Aggregate batching ingredients, with stable performance and high safety;
2. Adopting inclined belt conveyor for transportation, flexible site layout;
3. Adopting a large steel frame design, the overall appearance structure is majestic;
4. High precision measurement and efficient mixing technology, maximizing the quality of concrete;
5. Suitable for the production and supply of commercial concrete, construction of large-scaleengineering projects, or large and medium-sized concrete prefabricated factories.
PRODUCT SPECIFICATIONS
| model | HZS25 | HZS35 | HZS50 | HZS75 | HZS90 | HZS120 | HZS180 | |
| Theoretical productivity | 25m³/h | 35m³/h | 50m³/h | 75m³/h | 90m³/h | 120m³/h | 180m³/h | |
| Mixing host | model | JS500 | JS750 | JS1000 | JS1500 | JS1500 | JS2000 | JS3000 |
| Drive power | 18.5kw | 30kw | 2x18.5kw | 2x30kw | 2x30kw | 2x37kw | 2x55kw | |
| Maximum particle size | 80mm | 80mm | 80mm | 80mm | 80mm | 80mm | 80mm | |
Weighing Range | aggregate | （0-1800kg）±2% | （0-2500kg）±2% | （0-2500kg）±2% | （0-3500kg）±2% | 0-3000kg）±2% | 4x2500kg）±2% | （0-3500kg）±2% |
| cement | （0-300kg）±1% | （0-300kg）±1% | （0-500kg）±1% | （0-700kg）±1% | （0-700kg）±1% | （0-1100kg）±1% | （0-1600kg）±1% | |
| Fly ash | （0-250kg）±1% | （0-400kg）±1% | （0-400kg）±1% | （0-500kg）±1% | （0-600kg）±1% | |||
| water | （0-150kg）±1% | （0-200kg）±1% | （0-300kg）±1% | （0-300kg）±1% | （0-500kg）±1% | （0-500kg）±1% | （0-800kg）±1% | |
| admixture | （0-30kg）±1% | （0-30kg）±1% | （0-40kg）±1% | （0-40kg）±1% | （0-50kg）±1% | （0-80kg）±1% | （0-80kg）±1% | |
| Discharge height | 3800mm | 3800mm | 3800mm | 3800mm | 4000mm | 4200mm | 4200mm | |
| Whole machine power | 35kw | 55kw | 75kw | 110kw | 110kw | 145kw | 190kw | |

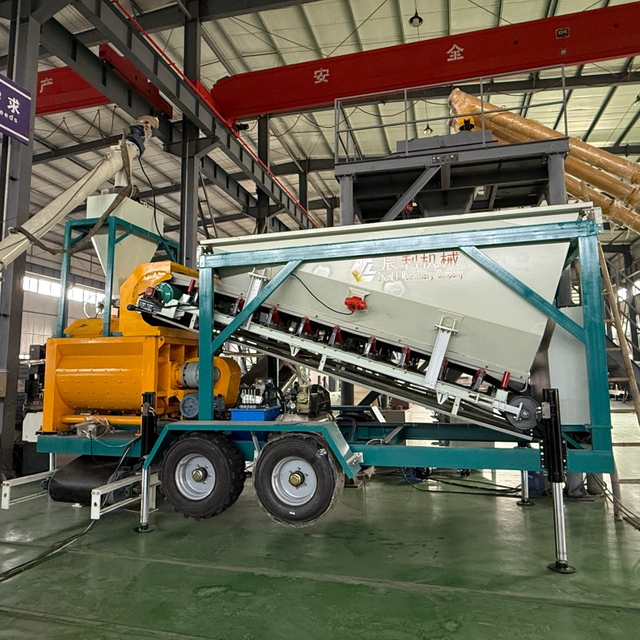

ACTUAL PRODUCT PHOTOS
PRODUCT COMPONENTS
(THE FOLLOWING CONTENT IS FOR REFERENCE ONLY AND CAN BE CUSTOMIZED)
1. Main Station Structure:
Main Building Columns、Mixed Floor Frame、Weighing Floor Frame、Extended Platform
2. Mixing System:
Cycloidal Pinwheel Reducer、Cylinder、Mixer、Automatic Lubrication、Concrete Discharge Hopper、High-Strength Liner and Blade Assembly
3. Aggregate Batching Machine:
In-Line Aggregate Silo、Sand Silo Screen、Gate Feeder、Weighing Hopper、Cylinder、Vibrator、Sensor、Horizontal Belt Conveyor、Electric Drum、Redirecting Drum、Conveyor Belt、Frame、Sweeper、Roller Assembly
4. Guide Rail Hoist：
Guide Rail、Guide Rail Bracket、Hoist Hopper、Wind Cycloidal Pinwheel Reducer
5. Cement Scale：
Pneumatic Butterfly Valve、Flexible Connector、Weighing Hopper、Sensor、Vibrator
6. Fly Ash Scale：
Pneumatic Butterfly Valve、Flexible Connector、Weighing Hopper、Sensor、Vibrator
7. Water weighing device：
Water supply pump、Sensor、Water weighing hopper、Water pipeline
8 Liquid admixture scale：
Admixture supply pump、Sensor、Admixture weighing hopper、Admixture tank、Admixture pipeline
9 Air control system：
Air compressor、Air storage tank、Two-way valve、Two-position five-way solenoid valve (main building)、Two-position two-way solenoid valve (powder tank)
10 Operating room：
Operating room、Control room bracket、Air conditioner
11 Microcomputer control system：
Commercial machine、Display、Operation buttons、Intermediate relay、Printer、Major electrical components、Batching controller、Industrial touch screen、UPS (uninterruptible power supply)、Building wiring and cables、High-voltage control cabinet、Microcomputer control console、Control software、Wiring bridge
