GDW600/DW1200/GDW2000/GDW3000/GDW4500/GDW6000/THZ500/THZ1000/THZ1500/THZ2000/THZ3000/THZ6000
CHEN LI
PRODUCT SPECIFICATIONS
| Plant Model | Mixer | Mixer Model | Tons/Hour | Annual Production /10,000 Tons | Application |
| GDW600 | Single Shaft Mixer | HJD600 | 10 | 5 | GDW/THZ mortar |
| DW1200 | Single Shaft Mixer | HJD1200 | 20 | 10 | GDW/THZ mortar |
| GDW2000 | Single Shaft Mixer | HJD2000 | 40 | 20 | GDW/THZ mortar |
| GDW3000 | Single Shaft Mixer | HJD3000 | 60 | 30 | GDW/THZ mortar |
| GDW4500 | Single Shaft Mixer | HJD4500 | 80 | 40 | GDW/THZ mortar |
| GDW6000 | Single Shaft Mixer | HJD6000 | 100 | 50 | GDW/THZ mortar |
| Plant Model | Mixer | Moer Model | Tons/Hour | AnnualProduction /10000 Tons | Application |
| THZ500 | Single Shaft Mixer | HJD600 | 3.5 | 2 | THZ mortar |
| THZ1000 | Single Shaft Mixer | HJD1200 | 7 | 4 | THZ mortar |
| THZ1500 | Single Shaft Mixer | HJD2000 | 10 | 5 | THZ mortar |
| THZ2000 | Single Shaft Mixer | HJD3000 | 14 | 10 | THZ mortar |
| THZ3000 | Single Shaft Mixer | HJD4500 | 30 | 20 | THZ mortar |
| THZ6000 | Single Shaft Mixer | HJD6000 | 40 | 30 | THZ mortar |

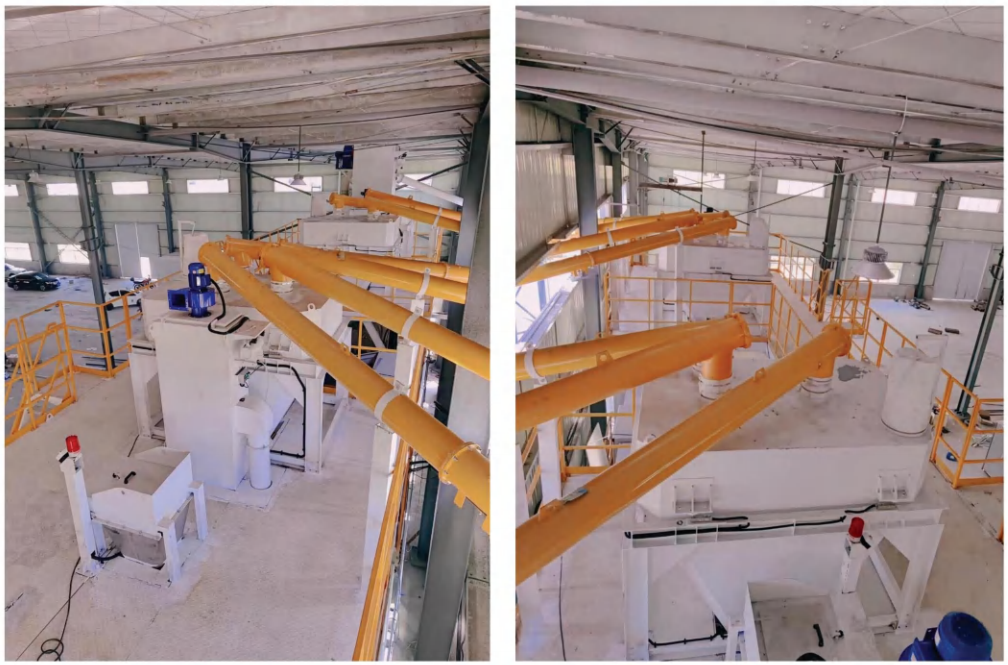

After years of accumulated experience, our company has developed a new generation of special mortar production lines, putty powder production lines, and gypsum mortar production equipment that can adapt to various raw materials, including vitrified microbeads, lignin fibers, building rubber powder, polystyrene particles, expanded perlite, heavy calcium and other special materials for measurement and mixing. Design different measuring and mixing methods based on the different physical characteristics of each material, striving to meet customers' quality requirements
Multi functional production line for lightweight gypsum, putty powder, and special mortar
1. Compact structure and small footprint;
2. Low investment and fast return;
3. Can produce various products such as lightweight gypsum, gypsum mortar, putty powder, special mortar, etc
4. Can be installed in standard industrial plants, simple and flexible.
MAIN COMPONENTS OF THE PRODUCT

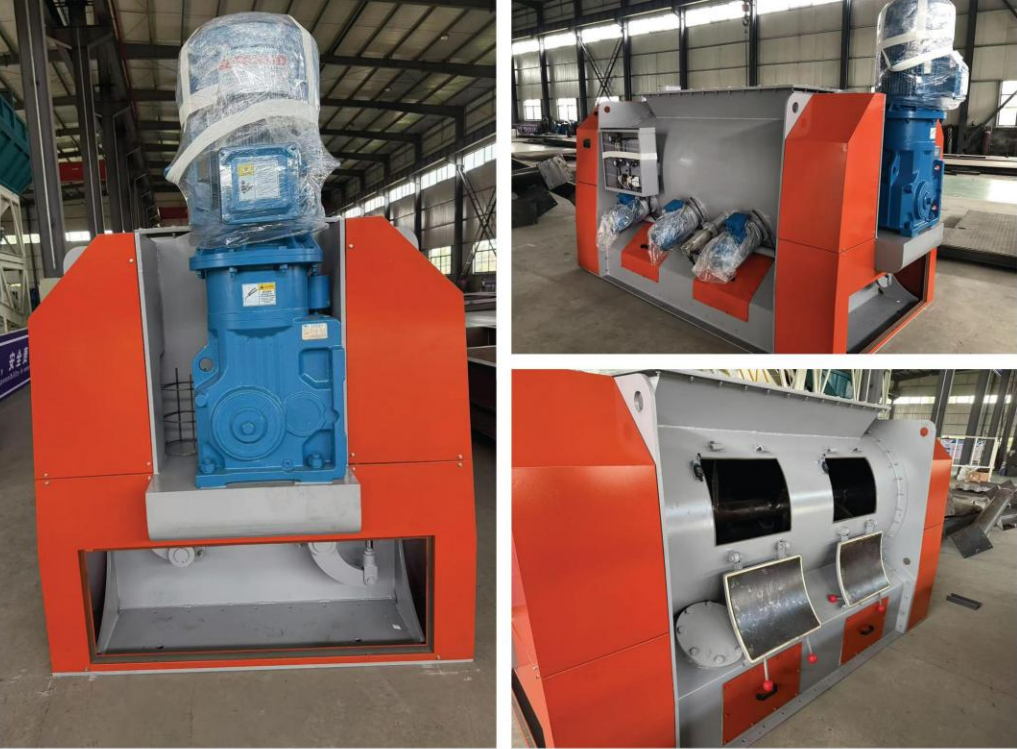

*MIXER
The overall structure design of the single axis high-efficiency mixer is compact, occupying lessspace, making it easy to install the whole machine and modify the equipment. The structure combinesmechanical seal and air pressure seal to prevent slurry leakage. The mixing bucket is made ofwear-resistant materials with a long service life. The mixing device uses plows to mix raw materialsresulting in better mixing effect and more thorough mixing. The unloading method with a largeopening door shortens the unloading time, improves efficiency, and ensures no residue. The cuttingand scattering effect of high-speed flying knives shortens the mixing time and improves the mixingaccuracy, especially for materials that are prone to clumping, which can play a role in dispersing andpreventing clumping.
| Model | DZ1000 | DZ1500 | DZ2000 | DZ3000 | DZ4000 | DZ5000 |
| Total volume | 1000 | 1600 | 2200 | 3200 | 4000 | 5000 |
| Volumetric Coefficient | 0.4-0.7 | 0.4~0.7 | 0.4-0.7 | 0.4-0.7 | 0.4~0.7 | 0.4~0.7 |
| Mixer Power | 11 | 18.5 | 22 | 37 | 55 | 75 |
| Discharge Power | 2.2 | 3 | 3 | 4 | 4 | 4 |
| Weight | 2000 | 2700 | 3500 | 4600 | 5800 | 7600 |
*WEIGHING SYSTEM
The weighing system adopts high-precision internationallyrenowned brand sensor modules, with precise control andstable performance.Under weighing automatic compensation,over weighingautomatic deduction, and the measurement and unloadingtolerance range of various materials can be adjustedseparately.The aggregate measurement adopts a multi stroke valvestructure, with high measurement accuracy and longservice life.Additive frequency conversion metering, more precise

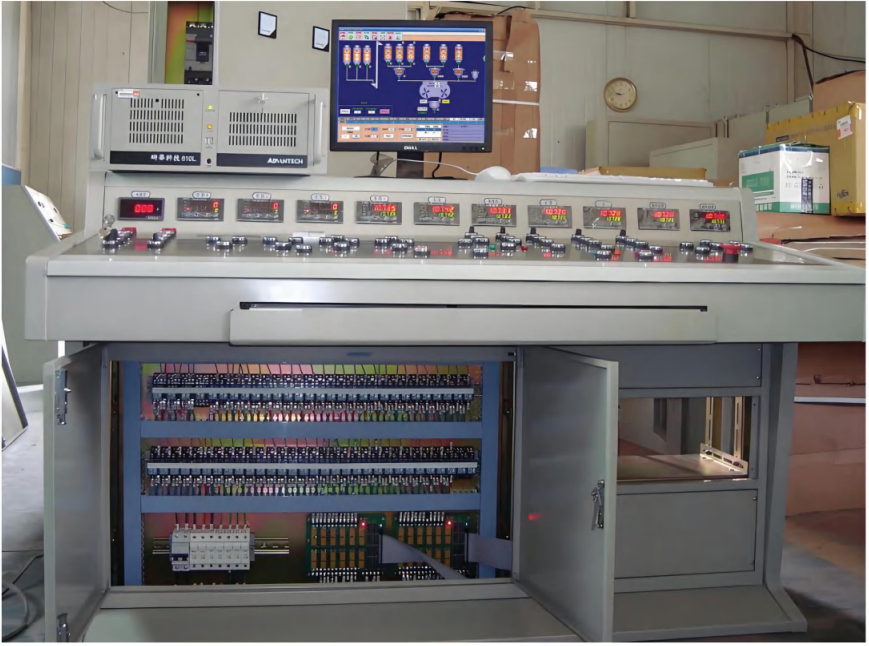

*CONTROL SYSTEM
The control system of the mortar production line consists of a computer system, an electronic batchingsystem, an operation console, a high-voltage cabinet, etc. Integrated software and hardware, withthree working modes: automatic, semi-automatic, and manual, making the control of the productionprocess more flexible. Convenient parameter setting, all production parameters can be completed withjust one click. The production process, unloading sequence, and mixing time calculation method canbe customized by users according to production needs and operating habits. Comprehensive onlinereal-time monitoring of equipment production status and implementation of safety chain control. lfabnormal working conditions occur, the equipment fault point can be accurately prompted to remind thestaff to locate, inspect and repair, achieve fault location and elimination, thereby improving productionmanagement level, ensuring equipment safety, and increasing economic benefits.

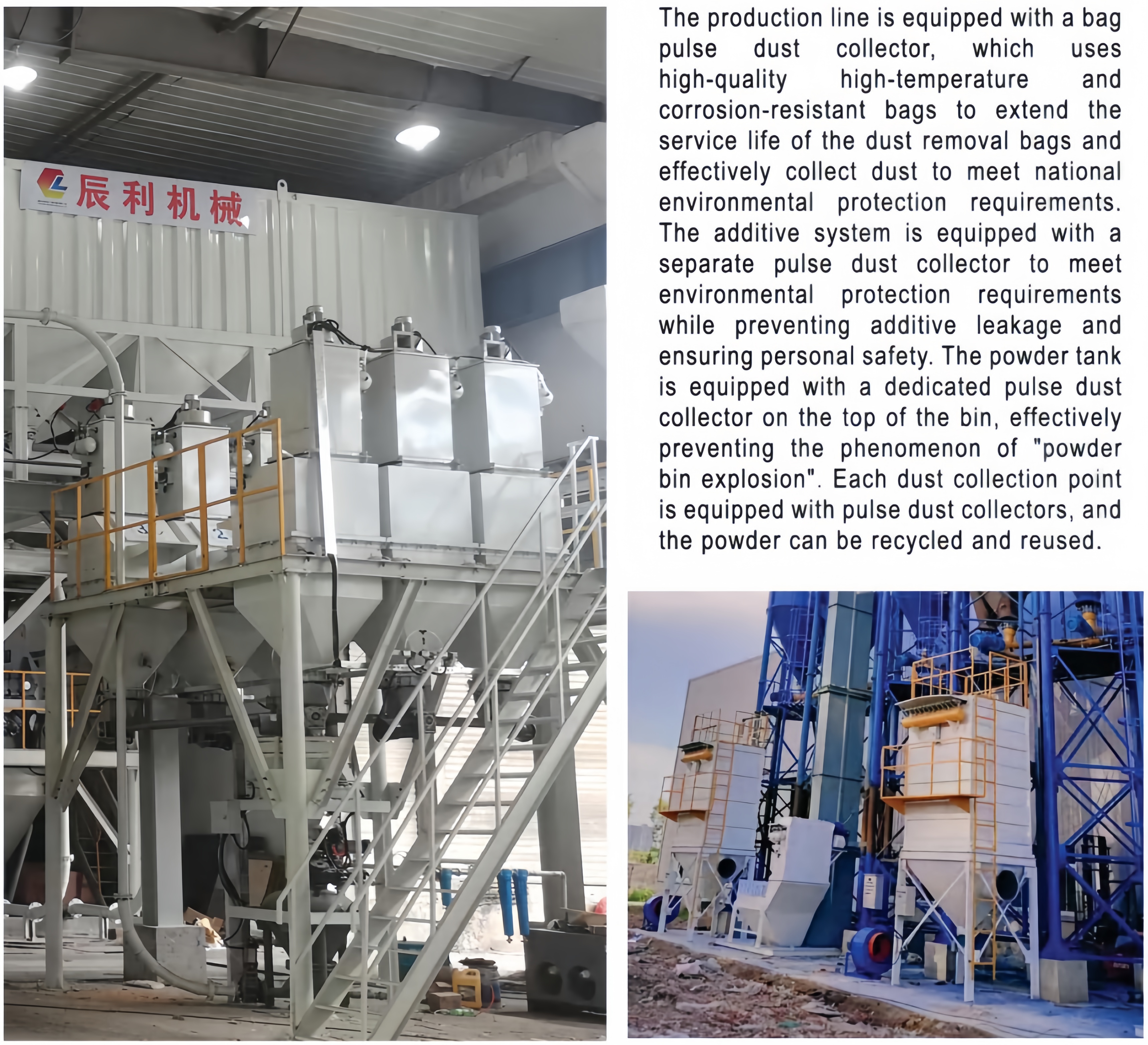

*DUST REMOVAL SYSTEM

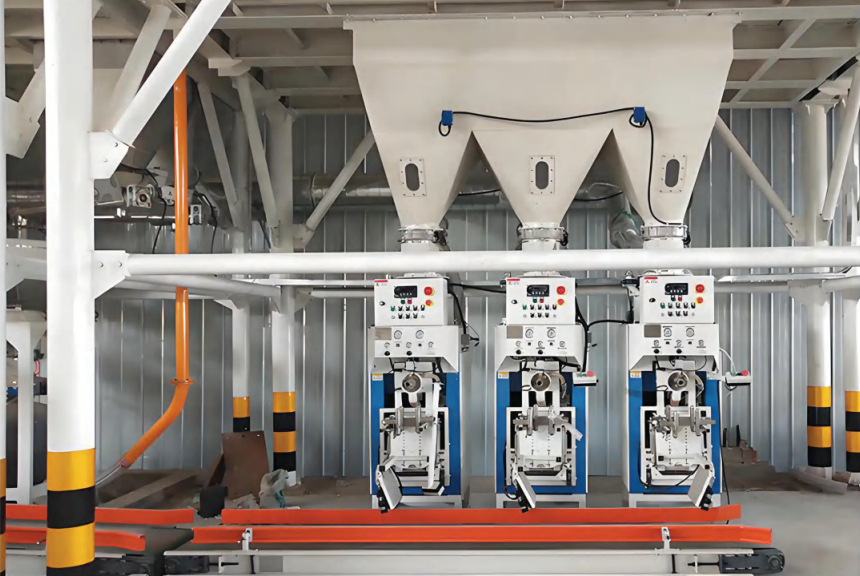

*PACKAGING AND BULK SYSTEMS

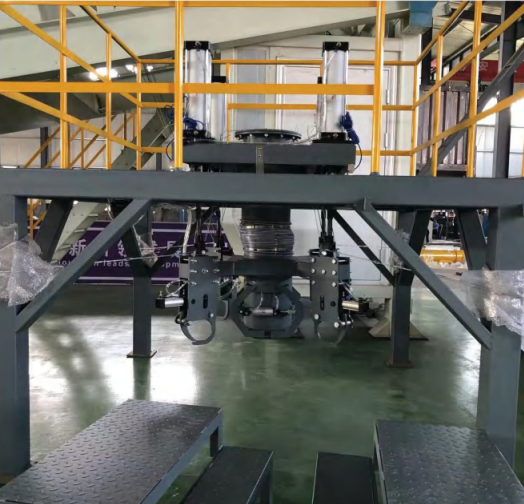

The bulk system solves the environmental protection problem onsite,
and the unique bulk structureeffectively prevents dust escapeduring
the loading of finished mortar.Bagging machines include air valvevalve
packaging machines, impellervalvepackaging machines, eightnozzle
rotary packaging machinesand ton bag packaging machines tomeet
different mortar packaging needs.

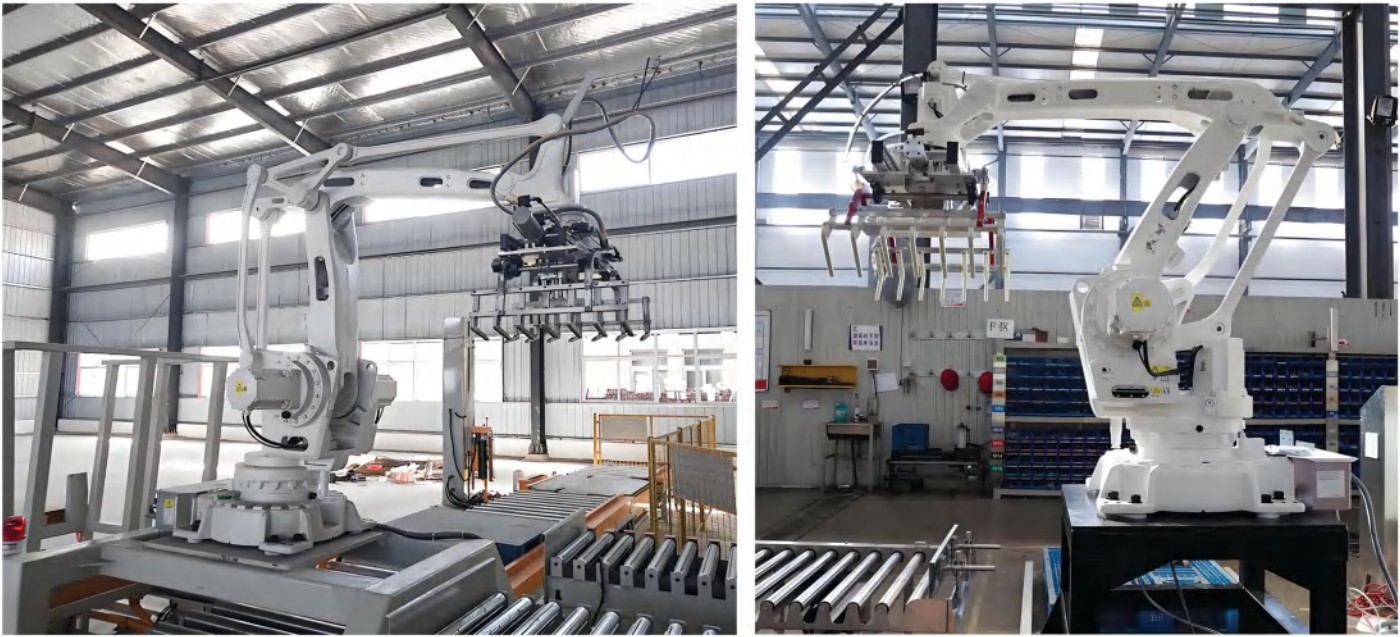

ROBOT PALLETIZING SYSTEM
The company provides customized integratedprojects for customers, including overall planningdesign and manufacturing, automation integration,installation and debugging of robot automationproduction lines.We have accumulated richexperience in large-scale automatic productionplanning and design,andcandevelopandimplement optimizedrobot palletizing andperipheral equipment solutions for customersbased on their actual production site, equipmentconditions,workpiece types,processcyclesproduction capacity, and other factors.
